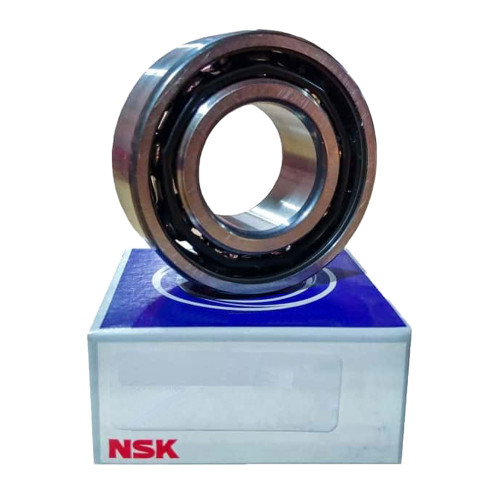

- 5202TNC3 - NSK Double Row Angular Contact - 15x35x15.9mm
Product Description
This 5202TNC3 bearing is a metric double row angular contact bearing with a polyamide cage and a larger than normal radial internal clearance. The bearing's dimensions are 15x35x15.9mm.
| 52 | 02 | TN | C3 | ||
|---|---|---|---|---|---|
| Double Row Angular Contact, Metric, Conrad, Light | 15mm - Bore Size | 25° Contact Angle | Open Type | Polyamide Cage | Internal Radial Clearance Greater than Normal |
| Dimensions (mm) | Weight (kg) | Brand | ||
|---|---|---|---|---|
| d | D | B | ||
| 15 | 35 | 15.9 | 0.07 | |
| Basic Dynamic Load Rating (kN) | Limiting Speeds (r/min) | ||
|---|---|---|---|
| Dynamic | Static | Grease | Oil |
| 11700 | 7050 | 13000 | 17000 |
Click here for an Imperial & Metric conversion chart
